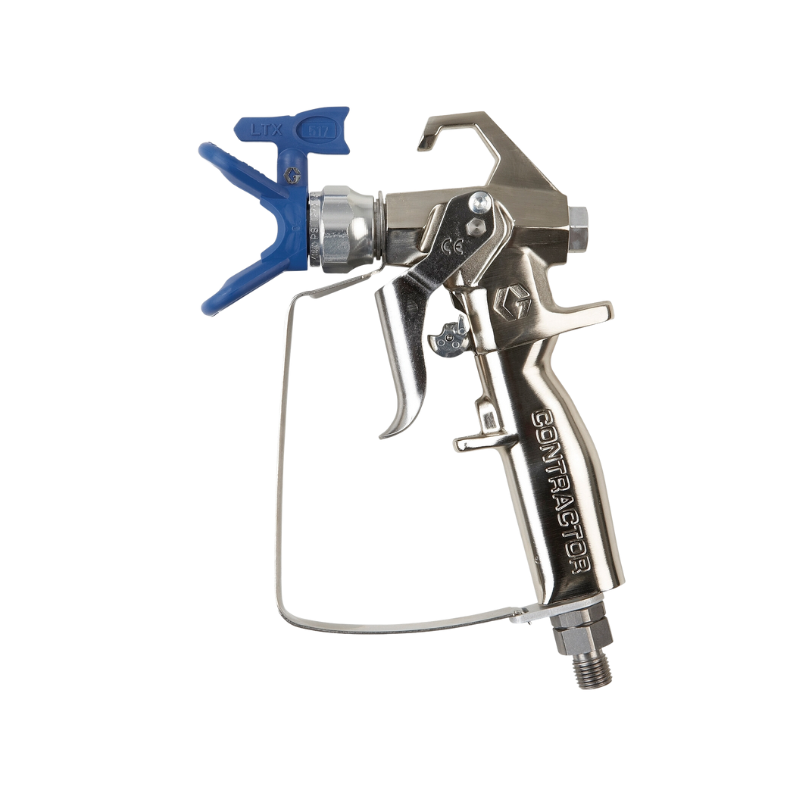

Graco Contractor Airless Spray Gun RAC X

Features

Exclusive FlexSeal Needle

• Totally enclosed patented design eliminates needle’s exposure to fluid, extends needle life by 70%, and ensures consistent needle shut-off
• Fluid pushes on seal to quickly shut off needle and reduce spitting
• Spring is located outside fluid path for better flow
• Helps eliminate pack out and slow needle shut-off

Reduced Gun Spitting

• Repositioned seat is closer to the tip, eliminating 60% of the dead space
• Less paint left between needle and tip results in less spitting

Ergonomic Design

• Form-fitted handle provides maximum control and comfort
• Detachable trigger guard swings clear of gun handle for easy filter access
• Lightweight design reduces operator fatigue

Trigger Lock

• Smooth, lightweight trigger pull with simple, thumb-engaged safety lock

Modular Needle Design

• Simply remove the trigger cross pin and unthread front housing to change out needle

EasyGlide Swivel

• Exclusive dual-seat swivel design reduces sealing friction under pressure, making this the best swivel on the market!

Easy Out Gun Filter

• Filters from the inside out to prevent filter from collapsing
• Interchangeable with all Contractor series guns

Specifications

• COMPONENT A INLET THREAD TYPE: NPSM
• COMPONENT TYPE: Single Component
• FLUID ORIFICE SIZE (CM): 0.318
• FLUID ORIFICE SIZE (IN): 0.125
• FLUID ORIFICE SIZE (MM): 3.17
• FOR USE WITH: Airless Sprayers
• GUN ACTIVATION: Manual
• GUN TYPE: Airless Gun
• GUN WEIGHT (OZ): 23.8
• INCLUDES: RAC X 515 SwitchTip, RAC X HandTite Guard
• MAXIMUM FLUID PRESSURE (BAR): 248
• MAXIMUM FLUID PRESSURE (KPA): 24800
• MAXIMUM FLUID PRESSURE (PSI): 3600
• MODEL: Contractor
• SERIES: Airless Spray Gun
• TRIGGER LOCK: Locking
• TRIGGER TYPE: Two-Finger
• TYPE: Spray Gun
• SPRAY TYPE: Airless
• MAXIMUM FLUID PRESSURE (MPA): 24.8
