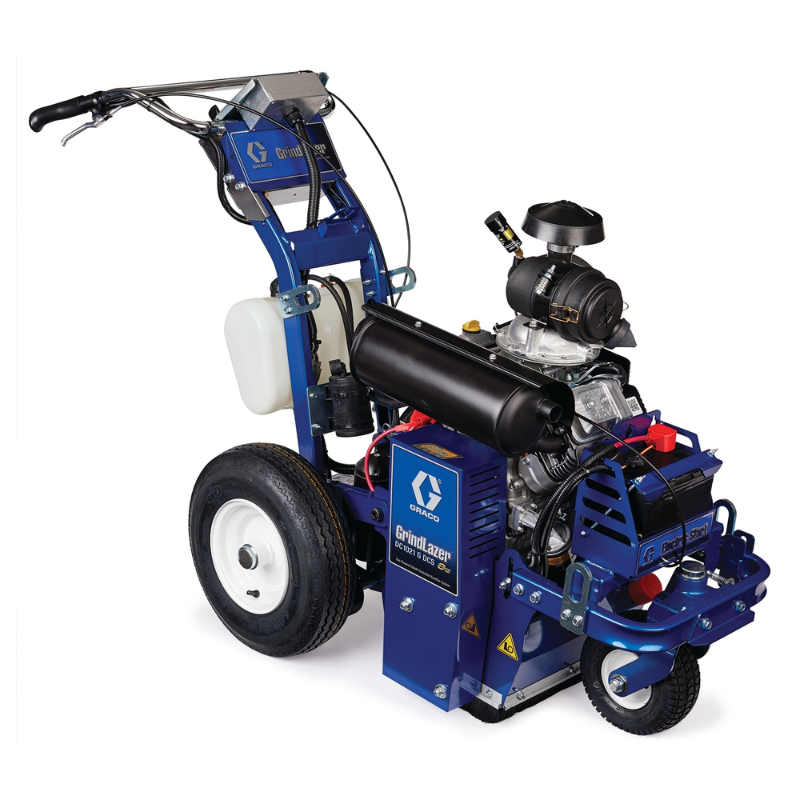

Graco GrindLazer HP DC1021 DCS Petrol-Powered Scarifier Bare

Features

DCS Controller

• Ultimate Control & Application Flexibility
• User settable “zero point” to match cutter assembly
• Displays “active depth”
• English and metric units
• Robust design stands up the harsh abuse
• Fully-encapsulated electronic components
• Ultimate protection from vibration, jobsite and weather conditions

Depth Control System

• Eliminate Measuring & Guesswork
• Quickly & easily adjust the cutter depth to align with ever-changing terrain
• Accurate cut depth for tape or thermoplastic inlays
• Eliminates damage due to “dropped drums”

Remote Momentary Switch

• Total Operator Control
• Control cut depth while keeping both hands on the GrindLazer

InstaCut Technology

• Ultimate Removal or Inlay Flexibility
• Only unit to offer “hands-on” engagement of the cutting deck system for up or down position
• Allows deck to “float” when on uneven surfaces
• No-tool system

Vibration Reduction Technology

• All-Day Comfort
• Up to 4x less vibration than the competition Pneumatic air-filled tires, comfort grips and cart design combine to eliminate vibration, reducing user fatigue
• Comfort-grip handlebars for precise steering

Vanguard 21 HP Engine with Donaldson Heavy-Duty Filtration

• Improved filtration to work longer and improve engine life
• Electric start system allows for easy starting with the turn of a key – even in cold weather

Extreme-Duty ProStart System

• Safer Operation
• Easy cutter start/stop with centrifugal clutch - one of the safest units on the market today Easy cold weather starting
• Provides longer belt life and eliminates broken recoils

TriBelt Drive System

• Maximum Road Handling
• 3-cog belt design optimizes power transfer and eliminates costly downtime

Fat Track Front Swivel Wheel

• Fast, Easy Turning
• Proven front caster wheel system makes turning fast and easy
• Maneuver curves better
• No need to “muscle it” while movin

Additonal Features

• EasyGlide Wheel Mount System
• Dustr-Free Vacuum Port
• LineDriver Required

Specifications

• CUT DIRECTION: Reverse
• ENGINE BRAND: Vanguard
• LINEDRIVER REQUIRED: Required
• MAXIMUM CUT WIDTH (CM): 25
• MAXIMUM CUT WIDTH (IN): 10
• MAXIMUM CUT WIDTH (MM): 254
• TYPE: Concrete Scarifier
• ENGINE SIZE (HP): 21
• PRODUCT SERIES: High Production
• CUTTER TYPE: Drum
• CUTTER DRUM DIAMETER (IN): 7
• MAXIMUM CUT RATE (FT2/HR): 2100
• VACUUM PORT: Yes
• WATER CONNECTION: Optional
• ENGINE START TYPE: Electric Start
• AIR FILTER TYPE: Donaldson Heavy-Duty
• DEPTH_ADJUSTMENT: Depth Control System (DCS)
• MODEL: GrindLazer
• SERIES: High Production Series

Drum Cutters

• 19A001: Wire Brush, 10 in, Fine
• 25M960: Steel Star, 10 in, Fine
• 25N183: Steel Star, 8 in, Fine
• 25N184: Steel Star, 6 in, Fine
• 25N185: Steel Star, 10 in, Medium
• 25N186: Steel Star, 8 in, Medium
• 25N187: Steel Star, 6 in, Medium
• 25M962: Steel Beam, 10 in, Fine
• 25N194: Steel Beam, 8 in, Fine
• 25N195: Steel Beam, 6 in, Fine
• 25N196: Steel Beam, 10 in, Medium
• 25N197: Steel Beam, 8 in, Medium
• 25N198: Steel Beam, 6 in, Medium
• 25N205: Carbide Flail 8 Pt, 10 in, Fine
• 25N206: Carbide Flail 8 Pt, 8 in, Fine
• 25N207: Carbide Flail 6 Pt, 10 in, Fine
• 25N208: Carbide Flail 8 Pt, 10 in, Medium
• 25N209: Carbide Flail 8 Pt, 8 in, Medium
• 25N210: Carbide Flail 8 Pt, 6 in, Medium
• 25M952: Carbide Flail 8 Pt, 10 in, Coarse
• 25N211: Carbide Flail 8 Pt, 8 in, Coarse
• 25N212: Carbide Flail 8 Pt, 6 in, Coarse
• 25N216: Carbide Flat, 10 in, Fine
• 25N217: Carbide Flat, 8 in, Fine
• 25N218: Carbide Flat, 6 in, Fine
• 25M954: Carbide Flat, 10 in, Medium
• 25N219: Carbide Flat, 8 in, Medium
• 25N220: Carbide Flat, 6 in, Medium
• 25N221: Carbide Flat, 10 in, Coarse
• 25N222: Carbide Flat, 8 in, Coarse
• 25N223: Carbide Flat, 6 in, Coarse
• 25N227: Carbide-Tipped Miller, 10 in, Fine
• 25N228: Carbide-Tipped Miller, 8 in, Fine
• 25N229: Carbide-Tipped Miller, 6 in, Fine
• 25N230: Carbide-Tipped Miller, 10 in, Medium
• 25N231: Carbide-Tipped Miller, 8 in, Medium
• 25N232: Carbide-Tipped Miller, 6 in, Medium
• 25M956: Carbide-Tipped Miller, 10 in, Coarse
• 25N233: Carbide-Tipped Miller, 8 in, Coarse
• 25N234: Carbide-Tipped Miller, 6 in, Coarse
• 25N238: Full-Carbide Miller, 10 in, Fine
• 25N239: Full-Carbide Miller, 8 in, Fine
• 25N241: Full-Carbide Miller, 6 in, Fine
• 25N242: Full-Carbide Miller, 10 in, Medium
• 25N243: Full-Carbide Miller, 8 in, Medium
• 25N244: Full-Carbide Miller, 6 in, Medium
• 25M958: Full-Carbide Miller, 10 in, Coarse
• 25N245: Full-Carbide Miller, 8 in, Coarse
• 25N246: Full-Carbide Miller, 6 in, Coarse
• 25M964:Carbide Pick, 10 in, Coarse
• 24D583: Diamond Dum, 10 in, no spacing
• 24B965: Diamond Dum, 5 in, no spacing
• 25R940: PCD Flat, 10 in
• 25R941: PCD Flat, 5 in
• 25R988: PCD Nano-Round, 10 in
• 25R989: PCD Nano-Round, 5 in
• 25R942: PCD Round, 10 in
• 25R944: PCD Round, 5 in

These parts / accessories are to be purchased separately.
