The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
Overview

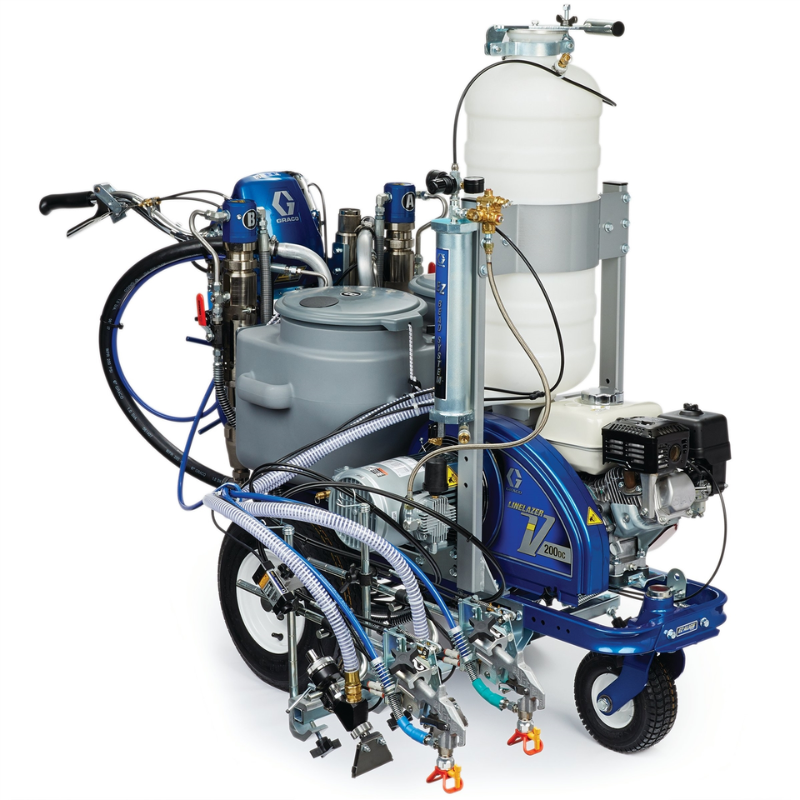

Ideal for smaller dual color jobs, the new LineLazer V 200DC simplifies the 2-color application process. Striping contractors can improve their efficiency and profitability by eliminating the need for separate “yellow” and “white” machines, while spending less time refilling materials.
Features
Pressurized EZ Bead System
- Superior bead application performance
- Ensures proper bead flow and paint penetration
- Hose clogging eliminated — desiccant air filter removes moisture
- Large volume bead tank holds up to 120lbs
Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
Auto-Layout II
- Simplify Parking Lot Layout
- SmartControl measures while you walk and puts down pre-marks
- No need for measuring tape, string lines or aerosol cans
- Cuts your layout time in half
LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
J-Log System with USB Download
- Valuable Job Information
- Proof of job = More striping opportunities.
- USB download capability allows you to capture and save all job data
Dual Color Capable
- Two Units in One
- No need for separate “yellow” and “white” machines
Large, Dual 10-Gallon Hoppers
- Less Refilling
Dual High-Efficiency Hydraulic Motors
- Uninterrupted Performance
- Proven no-stall design
Honda GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
Additional Features
- EasyMark Gun Adjustment System
- EZ Align Wheel System
- DualComfort Handlebar System
- Endurance Chromex Pump
- High-Capacity Cooling System
- QuikSelect Gun Selector
- Easy Out Pump Filter
- LazerGuide 1700 Start/Stop Laser
Specifications
- BEAD SYSTEM: Pressurized Bead System
- COMPATIBLE SURFACES: Pavement, Turf
- ENGINE BRAND: Honda
- ENGINE MODEL: GX200
- FEATURES: SmartControl
- FUEL TANK CAPACITY (GAL): 0.95
- FUEL TANK CAPACITY (L): 3.6
- GUN ACTIVATION: 2 Automatic
- HOPPER VOLUME CAPACITY (GAL): 10
- HOPPER VOLUME CAPACITY (L): 38
- INCLUDES: Pressurized Bead System, LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft BlueMax II Airless Hose (2), 3/8 in x 3 ft BlueMax II Airless Whip Hose (2), 4 oz TSL
- MAXIMUM FLOW RATE (GPM): 2.15
- MAXIMUM FLOW RATE (L/MIN): 8.14
- MAXIMUM TIP SIZE (CM): 0.1194
- MAXIMUM TIP SIZE (IN): 0.047
- MAXIMUM TIP SIZE (MM): 1.194
- MAXIMUM WORKING PRESSURE (BAR): 227
- MAXIMUM WORKING PRESSURE (KPA): 2270
- MAXIMUM WORKING PRESSURE (PSI): 3300
- MODEL: LineLazer V
- NUMBER OF GUNS: 2
- NUMBER OF HOPPERS: 2
- NUMBER OF PUMPS: 2
- POWER RATING (HP): 6.5
- POWER RATING (KW): 4.85
- POWER RATING (W): 4850
- PUMP TYPE: Endurance
- SERIES: 200DC
- COMPATIBLE MATERIAL: Road-Marking Paint
- WEIGHT (KG): 223
- WEIGHT (LB): 492
- TYPE: Walk-Behind Line Striper
- POWER SOURCE: Gas Hydraulic
- BEAD TANK SIZE (LB): 120
- PRODUCT SERIES: HP Reflective
- ATTACHMENTS: None
