Overview

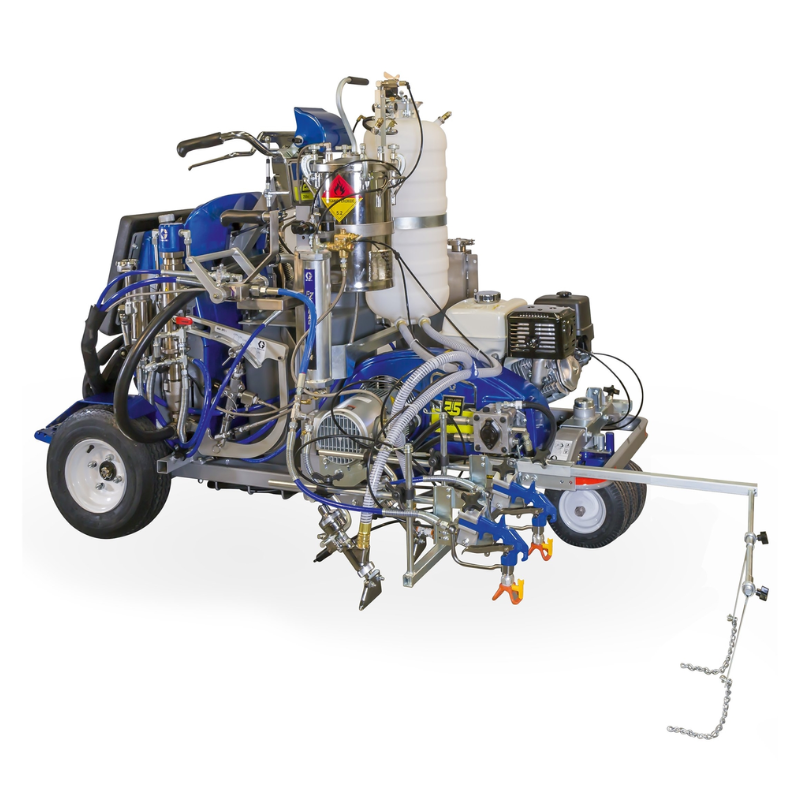

The Graco LineLazer V 250MMA 98:2 with 1 gun is a reliable solution that delivers superior MMA 98:2 performance and guarantees ratio assurance in a stand-on, self-propelled package. Unit shown with optional 2nd gun.
Features
Exclusive 98:2 Mixing System
- On-board storage tanks for MMA, BPO and solvent
- Exclusive hard-connect MMA and BPO pump design
- Engineered fro superior ratio control, from 1.5% to 4.0%
- Integrated mix hose for consistency in material mixing
- Ratio assurance system and mix-manifold for outstanding performance
Automatic Gun Control System
- Manual or automatic paint and bead guns with the push of a button
Graco Hydraulic Motor System
- No-stall hydraulic motor for uninterrupted performance
BPO Stainless Steel Pump and Tank
- Engineered for superior ratio control, from 1.5 to 4.0%
- Polyethylene tank liners available for quick color change and easy clean up
- 7 Liter capacity
Pressurized Bead System
- Consistent pressurized delivery of beads
Honda® GX Engine
- Industry proven performance with the most demanded engine by contractors
57 Liter Resin Feed Hopper
- Extended striping time with large capacity hopper
- Easy to service and clean
Endurance Piston Pump System
- Long life pump provides precise flow for striping with MMA
Solvent Flush System
- 2 gallon reservoir and air-operated double diaphragm pump provides pressurized flushing capability of manifold, hose assembly and gun
Additional Features
- Rear Gun Mount System
- Self-Centering Front Wheel
- Mix Manifold
Specifications
- FUEL TANK CAPACITY (GAL): 1.4
- FUEL TANK CAPACITY (L): 5.3
- GUN ACTIVATION: Automatic
- HOPPER VOLUME CAPACITY (GAL): 15
- HOPPER VOLUME CAPACITY (L): 57
- MAXIMUM FLOW RATE (GPM): 2.5
- MAXIMUM FLOW RATE (L/MIN): 9.5
- MAXIMUM SOUND PRESSURE LEVEL (DB(A)): 89.1
- MAXIMUM TIP SIZE (CM): 0.1397
- MAXIMUM TIP SIZE (IN): 0.055
- MAXIMUM TIP SIZE (MM): 1.3970
- MAXIMUM WORKING PRESSURE (BAR): 207
- MAXIMUM WORKING PRESSURE (KPA): 2070
- MAXIMUM WORKING PRESSURE (PSI): 3000
- MODEL: LineLazer V
- OVERALL HEIGHT (CM): 141.5
- OVERALL HEIGHT (IN): 55.7
- OVERALL HEIGHT (MM): 1414.8
- OVERALL LENGTH (CM): 186.7
- OVERALL LENGTH (IN): 73.5
- OVERALL LENGTH (MM): 1866.9
- OVERALL WIDTH (CM): 83.8
- OVERALL WIDTH (IN): 33
- OVERALL WIDTH (MM): 838
- POWER RATING (HP): 11.9
- POWER RATING (KW): 8.8
- PUMP TYPE: Endurance
- SERIES: 200MMA
- WEIGHT (KG): 405
- WEIGHT (LB): 893
- TYPE: Walk-Behind Line Striper
- POWER SOURCE: Gas Hydraulic
- BEAD TANK SIZE (LB): 120
- PRODUCT SERIES: HP Reflective
