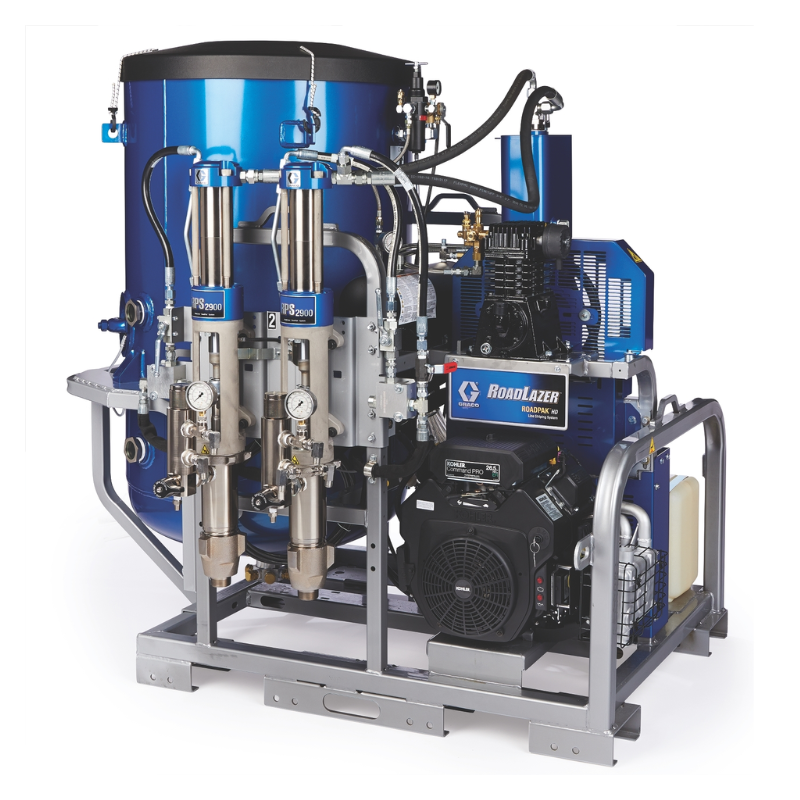

Graco RoadLazer RoadPak HD System

Features

RoadPak HD 2-Pump System

Higher performance with double the output up to 37.9 LPM (10 GPM)

Heavy-Duty RPS 2900 Hydraulic System

• No-stall design provides unmatched productivity
• Maximum pressure of 200 bar

Proven Displacement Pump System

• Delivering outstanding results in pumping paint for decades
• Prime valve allows you to recirculate paint keeping it mixed and ready to go

Bead Tank System

• ASME rated and can drop at a rate of up to 18 kg per minute
• Easier material loading with large fill spout opening

RoadPak HD 2-Pump/3-Gun Arm

Fast set-up, high output

5+ Gun capacity: 5 spray Guns and 5 bead Guns

EasyMark Gun Adjustment System

• Simple guide mark system
• Easy gun on/off
• Perfect gun alignment every time

Advanced Controller

• Less Setup Time
• Built-in advanced patterns for quick recall
• Pattern preview gives a quick visual of colors and patterns selected
• Export capabilities allows for “proof of job”

Heavy-Duty Modular Frame System

• Heavy-duty steel frame is built to last
• Simple to add the options you want in minutes - optimizing your striping system
• Small frame size allows it to fit almost anywhere - from the back of a pickup or flatbed truck to the bed of a utility vehicle

Heavy-Duty Modular Frame System

• Heavy-duty steel frame is built to last
• Simple to add the options you want in minutes - optimizing your striping system
• Small frame size allows it to fit almost anywhere - from the back of a pickup or flatbed truck to the bed of a utility vehicle

Heavy-Duty Compressor

• 100 psi (6.9 bar) at 13.1 cfm (0.37 m³/min)
• Accumulation tank supports up to 5 airless paint guns and 5 bead guns

Kohler® Power

• 19 HP (14.2 kW) Kohler engine
• Over 15 years of reliable experience

Specifications

• BEAD SYSTEM: Pressurized Bead System
• ENGINE BRAND: Kohler
• INCLUDES: RoadPak 高级控制器, RoadPak アドバンスコントローラー, RoadPak Advanced Controller, Controlador avanzado RoadPak, RoadPak 고급 제어기, RoadPak HD 2 喷枪臂, RoadPak HD 2 ガンアーム, RoadPak HD 2 Gun Arm, brazo de pistola RoadPak HD 2, RoadPak HD 2건 암, 滑入式安装架, スライドイン取り付けフレーム, Slide-in Mounting Frame, marco de montaje deslizable, 슬라이드-인 장착 프레임, 简单引导系统, シンプルガイドシステム, Simple Guide System, sistema de guía simple, 건 리프트 윈치 키트, 喷枪绞车配件包, ガンリフトウィッチキット, Gun Lift Winch Kit, kit elevador de cabrestante para pistola
• MAXIMUM FLOW RATE (GPM): 10
• MAXIMUM FLOW RATE (L/MIN): 37.8
• MAXIMUM SOUND PRESSURE LEVEL (DB(A)): 95.2
• MAXIMUM WORKING PRESSURE (BAR): 200
• MAXIMUM WORKING PRESSURE (KPA): 2000
• MAXIMUM WORKING PRESSURE (PSI): 2900
• MODEL: RoadLazer
• NUMBER OF GUNS: 3
• NUMBER OF PUMPS: 2
• POWER RATING (HP): 26.5
• POWER RATING (KW): 19.8
• SERIES: RoadPak HD
• TYPE: Truck-Mounted Line Striper
• BEAD TANK SIZE (LB): 1350
• MOUNT TYPE: Slide-In Mounting Frame
