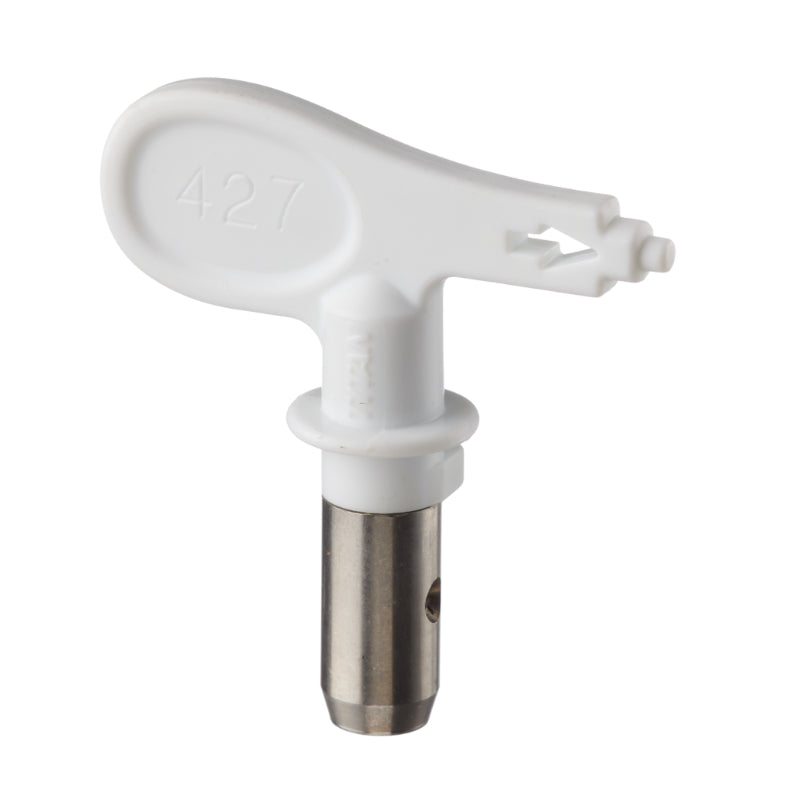

Titan Line Striping Tips

Titan Line Striping Tips

$67.00
SKU: 697-215
Size:

Size
Quantity:

Overview

Titan’s line striping tips provide razor sharp line edges, consistent line width, and uniform film thickness. They also reduce wasted paint and increase striper profits.

EASY-TO-UNDERSTAND TIP SIZES

  • Part Number: 697–XYY
  • X = Width of stripe (inches) when sprayed 6" from surface
  • YY = Orifice size in thousandths of an inch

Example: 419 = 4" wide stripe with a 0.019" orifice

Fan Width 0.013 0.015 0.017 0.019 0.021 0.023 0.025 0.027
2" / 51mm
215 217 219



4" / 102mm 413 415 417 419 421 423
427
6" / 152mm
615 617 619 621


8"-10" / 203mm - 254mm



821 823

Flow GPM 0.18 0.24 0.31 0.39 0.47 0.57 0.67 0.78
Flow LPM 0.68 0.91 1.17 1.47 1.78 2.15 2.53 2.95
