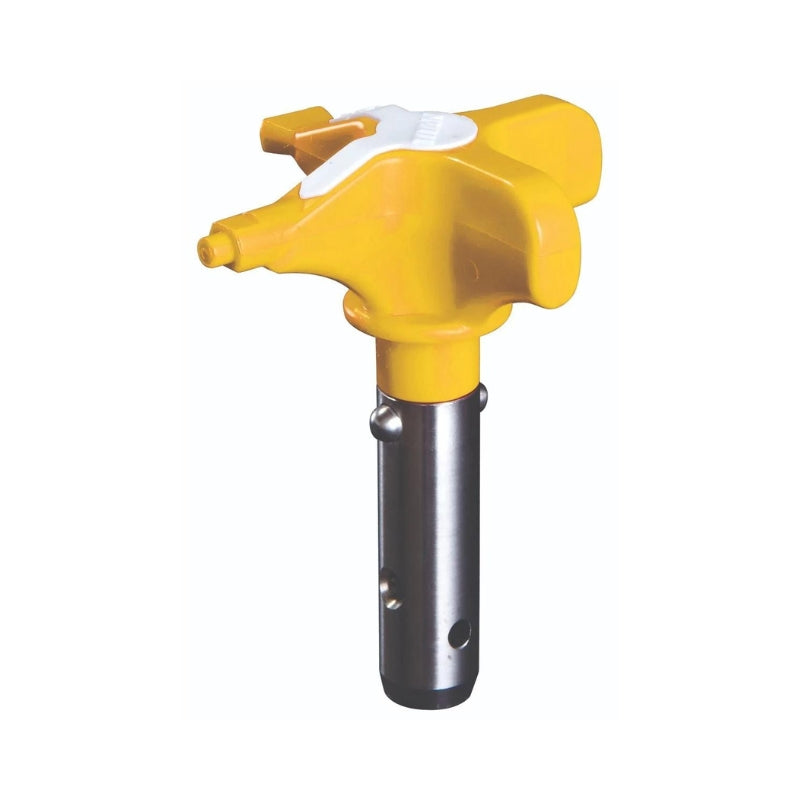

Titan TR2 Line Striping / Stenciling Tips
Enquire For Price
✕
Overview
Go from striping to stenciling with the twist of the tip.
EASY-TO-UNDERSTAND TIP SIZES
- Part Number: 697–XYY
- X = Width of stripe (inches) when sprayed 6" from surface
- YY = Orifice size in thousandths of an inch
Example: 419 = 4" wide stripe with a 0.019" orifice
Part No | Striping Tip Size | Stencil Tip Size | Flag | Filter Colour |
694-1708517 | 417 | 517 | Yellow | White |
694-1908519 | 419 | 519 | Yellow | White |
694-2108621 | 421 | 621 | Yellow | White |
694-2308623 | 423 | 623 | Yellow | White |
